When you lift your classic 4x4, the factory steering linkage often becomes the weakest link in your suspension setup. Installing a Complete Dana 44 Crossover Steering System is the best way to correct your front-end geometry, eliminate dangerous steering feedback, and gain the reliability needed for extreme off-road terrain. If you’ve been struggling with "dead spots" in your steering or erratic handling, switching to an elevated crossover configuration is not just an upgrade—it's a transformation for your rig's on-road manners and trail capability.
Why Your Lifted Rig Needs a Geometry Overhaul
Classic GM and Jeep vehicles utilized a "push-pull" steering system that connects the steering gear box directly to the driver-side knuckle. At stock height, this setup works well enough. However, adding a suspension lift of 4 inches or more pulls the front axle away from the frame, forcing that short drag link into a severe downward angle.
Eliminate Bump Steer Once and For All
This steep angle is a recipe for disaster. As your axle cycles through its suspension travel, that angled linkage is forced to push and pull against the steering box, physically steering your tires without any driver input. To effectively Fix Bump Steer Lifted Chevy K5 and K10 owners experience, you must flatten the drag link's operating angle. An hd crossover steering kit routes a long, horizontal drag link across the axle, ensuring the linkage remains parallel to the differential throughout the entire suspension cycle.
Dana 44 vs 10 Bolt Crossover Steering: Compatibility Explained
A common concern among classic truck builders is whether their axle housing is compatible with modern steering upgrades. Fortunately, the outer steering architecture—including spindle bolt patterns, brake caliper brackets, and ball joint dimensions—is identical between the GM Corporate 10 Bolt and the Dana 44. This means you can install a Chevy 10 Bolt Crossover Steering Kit directly onto your factory 10 Bolt housing without performing a full axle swap.
The East West Off Road Engineering Advantage
When you are deep on the trail, you cannot afford component failure. The East West Off Road steering kit is manufactured in the USA using premium domestic billet steel, engineered to handle the massive leverage generated by oversized off-road tires.
Dana 44 Flat Top Knuckle Conversion Made Simple

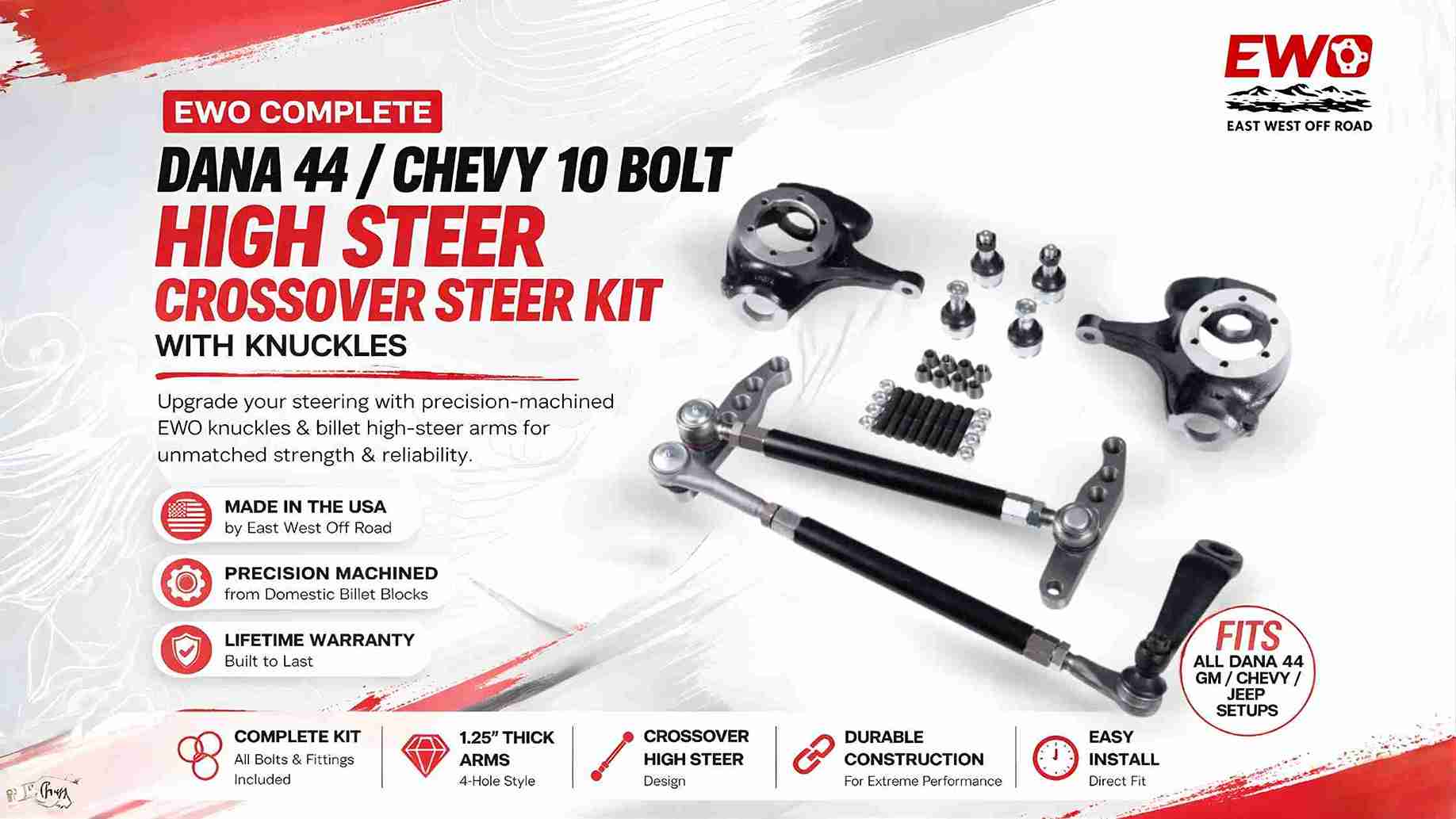

Historically, upgrading your steering meant sourcing vintage flat top knuckles from a salvage yard and paying a machine shop to mill, drill, and tap them. Our EWO complete Dana 44 high steer kit eliminates this bottleneck by providing brand-new, pre-machined knuckles. These knuckles are designed with a "Bottom Down" taper to perfectly fit heavy-duty 1-ton tie rod ends, making this a true K10 Crossover Steering Kit No Reaming required. It is the ultimate Bolt-On High Steer Kit GM 10 Bolt solution that gets you back on the trail fast.
Unyielding Billet Components
- USA Made Dana 44 Steering Arms: Precision CNC-machined from 1.25-inch thick billet steel, these arms use a 4-hole mounting pattern for maximum clamping force.
- Heavy-Duty Tubing: Our 1.50 x .250 DOM tubing steering kit offers superior wall thickness to withstand direct impacts from rocks and trail obstacles.
- Premium Joint Hardware: Every kit features high-strength ES2026R ES2027L drag link ends and ES2234L ES2234R tie rod ends, ensuring smooth, bind-free articulation.
Essential Installation: The 2WD Steering Box
To successfully run this crossover configuration, you must implement a 2wd steering box crossover setup. A factory 4WD steering gear box sweeps side-to-side, which cannot actuate a cross-axle horizontal link. Replacing it with a standard GM 2WD box provides the necessary forward-and-backward sector shaft stroke required for this upgrade to function properly.
By combining this gear box swap with a 3 inch dropped pitman arm 32 spline and our complete Dana 44 upper lower ball joints kit, you ensure that every steering input is crisp, direct, and reliable.
Frequently Asked Questions (FAQs)
Will this kit bolt directly onto my factory GM 10 Bolt axle?
Yes! Because the outer knuckle geometry and ball joint spacing are identical between the GM Corporate 10 Bolt and the Dana 44, this kit is fully compatible with both platforms.
Do I need to be a professional welder to install this kit?
Yes. While the knuckles and billet arms are bolt-on components, the included tube adapters (weld bungs) must be professionally welded into the DOM tubing to allow you to thread in the heavy-duty rod ends.
Why do I need to swap to a 2WD steering box?
Your factory 4WD steering box operates with a side-to-side stroke, which is incompatible with a crossover drag link. A 2WD steering box operates with a front-to-back stroke, which is the mechanical motion required to correctly actuate the crossover linkage.
What is the advantage of using "no reaming" knuckles?
Standard knuckle upgrades often require a machine shop to ream and taper holes to fit 1-ton rod ends. Our knuckles come pre-machined with the correct 1-ton tapers, entirely eliminating the need for professional machine shop work.
Are the billet steering arms really that much stronger than cast iron?
Yes. Cast iron is brittle and prone to micro-fractures under heavy load. Our billet arms are CNC-machined from solid domestic steel, offering uniform structural density and extreme impact resistance, backed by a lifetime warranty.
