If you are upgrading your classic solid-axle GM rig for serious off-road abuse, your factory steering linkage is living on borrowed time. Lifting a truck instantly compromises the factory geometry, creating dangerous handling characteristics that can ruin your trail experience. To regain total control and bulletproof your front end, installing a premium Flat Top Knuckle Conversion Kit is an absolute necessity. By elevating your steering linkage above the axle and correcting the drag link angle, you unlock predictable handling, massive articulation, and the unmatched strength required to dominate any terrain.
The Flaws of Lifted Factory Steering Systems
The original push-pull steering architecture on vintage GM trucks was engineered exclusively for stock ride heights. The moment you bolt on a suspension lift, the distance between your steering box and the axle drastically increases, dragging your steering linkage into a severe, unnatural downward slope.
This steep angle creates a terrifying leverage effect. Every time your suspension cycles over a rut or a rock, the suspension travel physically yanks the steering linkage, causing the steering wheel to violently jerk out of your hands. To safely and permanently Eliminate Bump Steer Lifted Chevy owners deal with, you must flatten this geometry. Upgrading to a premium Chevy 10 bolt crossover steering kit solves the problem by routing the linkage horizontally across the front axle, ensuring your vehicle tracks perfectly straight. A true hd crossover steering kit transforms how your vehicle reacts to the trail.
Building the Ultimate Front End Arsenal

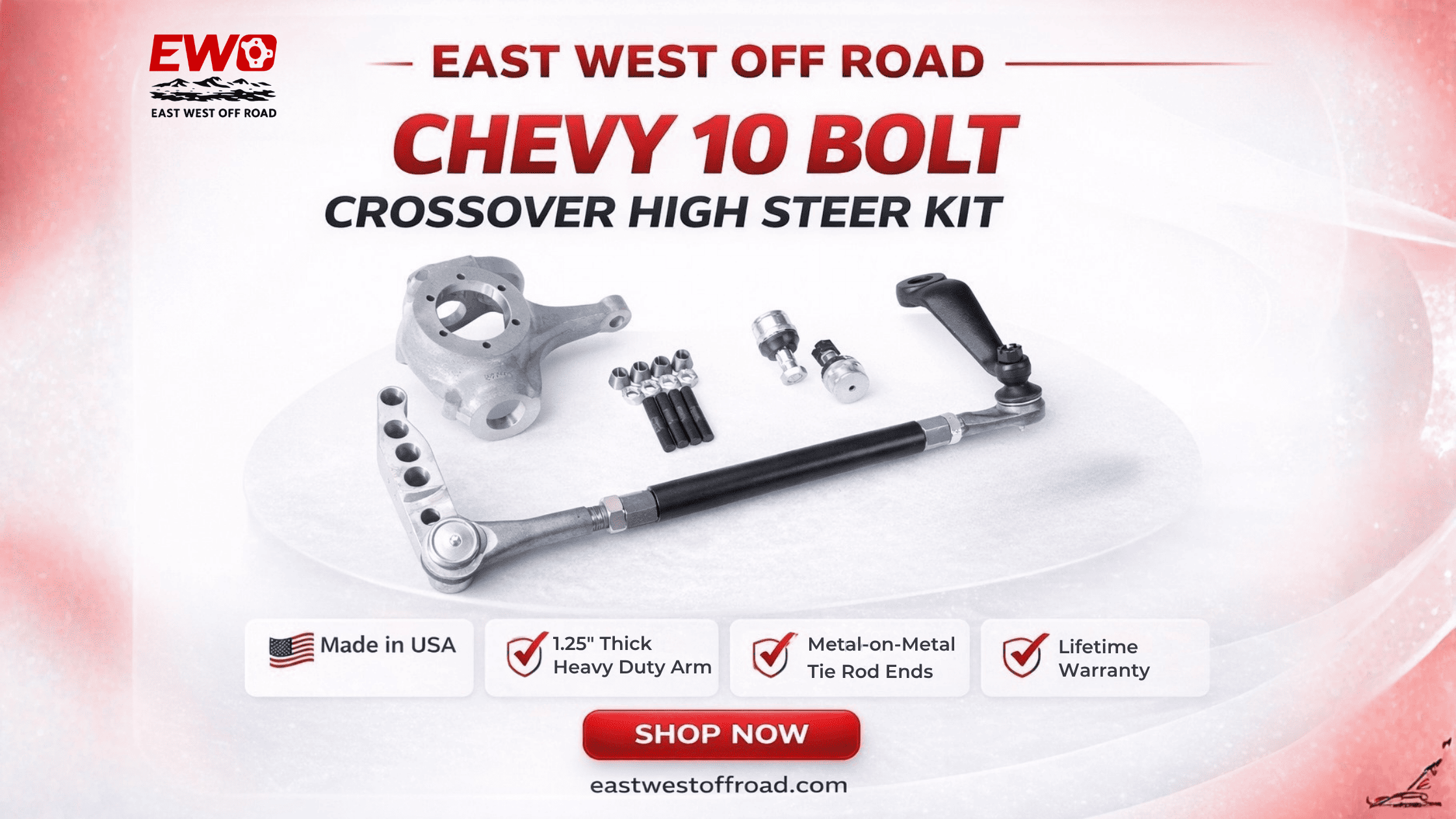

When executing a Dana 44 to 10 Bolt Steering Swap, relying on weak, factory-cast junkyard parts is a recipe for disaster. The EWO complete crossover high steer kit provides a fully integrated, premium American-made solution that reinforces every vulnerable point in your steering system.
A Rock-Solid Foundation
A reliable Dana 44 crossover steering setup starts right at the wheels. This high-performance Dana 44 High Steer Kit with Knuckle features a USA-made Dana 44 high steer knuckle, precisely machined with a "Bottom Up" taper (a slit tapered insert is also included should you need to change the orientation to "Bottom Down").
Bolted firmly to this rugged casting are massive 1.25 inch billet high steer arms. Machined in-house from domestic billet blocks, these 4-hole style passenger-side arms are virtually indestructible and backed by a lifetime warranty. To guarantee flawless pivoting under extreme articulation, the East West Offroad steering kit also incorporates a heavy-duty Dana 44 upper lower ball joint kit featuring a durable metal-on-metal design.
Bulletproof Your Steering Linkage
Connecting your steering gear to the new high steer knuckle requires a linkage that absolutely refuses to flex or buckle. This package functions as a complete GM 1 Ton Tie Rod Upgrade.
DOM Tubing and Superior Ends
You receive a massive 43-inch DOM tubing drag link kit constructed from ultra-thick 1.50” x .250” wall tubing. This gives you the premium raw material needed to fabricate a custom link tailored perfectly to your exact lift height, acting as a true Heavy Duty Drag Link Kit Chevy upgrade.
Capping off that robust tubing are incredibly durable ES2026R ES2027L drag link ends. These are high-performance metal to metal tie rod ends engineered with advanced spring technology that performs way beyond expectations, drastically outlasting standard plastic-lined joints. To complete this Chevy 10 Bolt Crossover High Steer Kit, you receive all essential hardware, including 7/8 – 18 left and right tube adapters (weld bungs), jam nuts, high-strength Dana 9/16” studs, conical washers, and lock nuts.
Modifying the Chassis Side for True Precision
To unlock true Heavy duty crossover steering Dana 44 capabilities, a major modification must be made to your chassis-side steering gear before hitting the dirt.
Factory 4WD steering boxes utilize a front-to-back sweeping motion that is completely incompatible with a side-to-side linkage. You must execute a 2wd steering box crossover swap. The 2WD gear box allows the sector shaft to swing laterally. Once the 2WD gear is securely bolted to the frame, the included 3 inch drop forged pitman arm 32 spline easily attaches. This forged arm is fully indexable, ensuring perfect alignment to complete your ultimate K5 Blazer High Steer System and finalize your Chevy 10 bolt steering conversion. Whether you need a Chevy 10 bolt steering upgrade or a reliable Offroad crossover steering Dana 44 solution, replacing the chassis-side gear is mandatory.
Frequently Asked Questions (FAQs)
Will this complete kit work for both Dana 44 and Chevy 10 Bolt front axles?
Yes! The geometry, tapers, and bolt patterns are universally engineered to be fully compatible with both applications, making it an incredibly versatile upgrade for your classic GM build.
Why do I need to weld the drag link?
Because every custom truck features slightly different suspension geometry, leaf spring arch, and lift heights, the kit includes a blank 43-inch piece of heavy-wall DOM tubing. You must measure the exact required length for your rig, cut the tube, and professionally weld the threaded tube adapters into the ends for a safe, bind-free fit.
Are metal-to-metal tie rod ends actually better?
Absolutely. Standard factory tie rod ends utilize internal plastic or nylon wear liners. Under the immense stress of turning large off-road tires, these liners quickly crush and degrade, creating dangerous "slop." The metal-on-metal joints in our kit provide a steel friction surface combined with advanced spring technology, resulting in a much tighter, stronger connection built to withstand severe trail abuse.
