If you lift a classic square-body Chevy truck, K5 Blazer, or Suburban, you quickly realize that the factory steering geometry leaves a lot to be desired. As suspension height increases, the angle of your drag link becomes severely compromised. This leads to erratic handling, wandering, and the dreaded phenomenon known as bump steer. Upgrading to a premium Chevy Dana 44 Crossover Steering Kit is the absolute best way to correct these geometry issues, restore precision handling, and ensure your rig is truly trail-ready. Whether you are crawling over boulders or cruising down the highway, upgrading your steering setup transforms your driving experience from a white-knuckle chore into a smooth, controlled ride.
Understanding the Need for a 1 Ton Steering Upgrade Dana 44
Factory push-pull steering systems work passably well at stock ride heights, but they fall apart visually and mechanically when a suspension lift is introduced. When your front axle drops relative to the frame, the factory drag link angles sharply down to the driver-side steering knuckle. Every time your suspension compresses or rebounds over bumps, the axle moves laterally, forcing the wheels to steer independently of your steering wheel input.
By upgrading to a 1 Ton Steering Upgrade Dana 44 configuration, you completely change how your steering forces are distributed. A crossover setup routes a longer drag link from the pitman arm across the vehicle to the passenger-side knuckle. This drastically flattens the drag link angle, allowing it to move in a parallel arc with your suspension links. The result? You completely eliminate bump steer K5 Blazer issues, improve turning radius, and gain the mechanical leverage needed to turn larger off-road tires with absolute ease.
The Foundation: Driver and Passenger Side Flat Top Knuckles
To execute a true crossover or high-steer conversion, you cannot rely on factory cast knuckles that lack machined mounting surfaces. The anchor of any bulletproof system is a premium set of driver and passenger side flat top knuckles.
Why Flat Top Knuckles Matter
Standard factory knuckles only feature cast steering arms intended for the low-slung, stock push-pull drag links. Flat top knuckles, however, are specifically cast with a heavy-duty, flat upper plateau. This plateau is precision machined, drilled, and tapped to accept heavy-duty aftermarket steering arms that bolt securely to the top of the knuckle, lifting your steering linkages completely out of harm's way.
The East West Off Road Advantage
Unlike mass-produced imports, the EWO Dana 44 crossover knuckles included in this premium kit are engineered and manufactured right here in America. When you are looking for a heavy-duty Reid Racing Knuckles alternative, East West Off Road offers an incredibly robust, USA-made option that provides exact tolerances, superior grain structure, and uncompromising structural integrity for extreme wheeling.

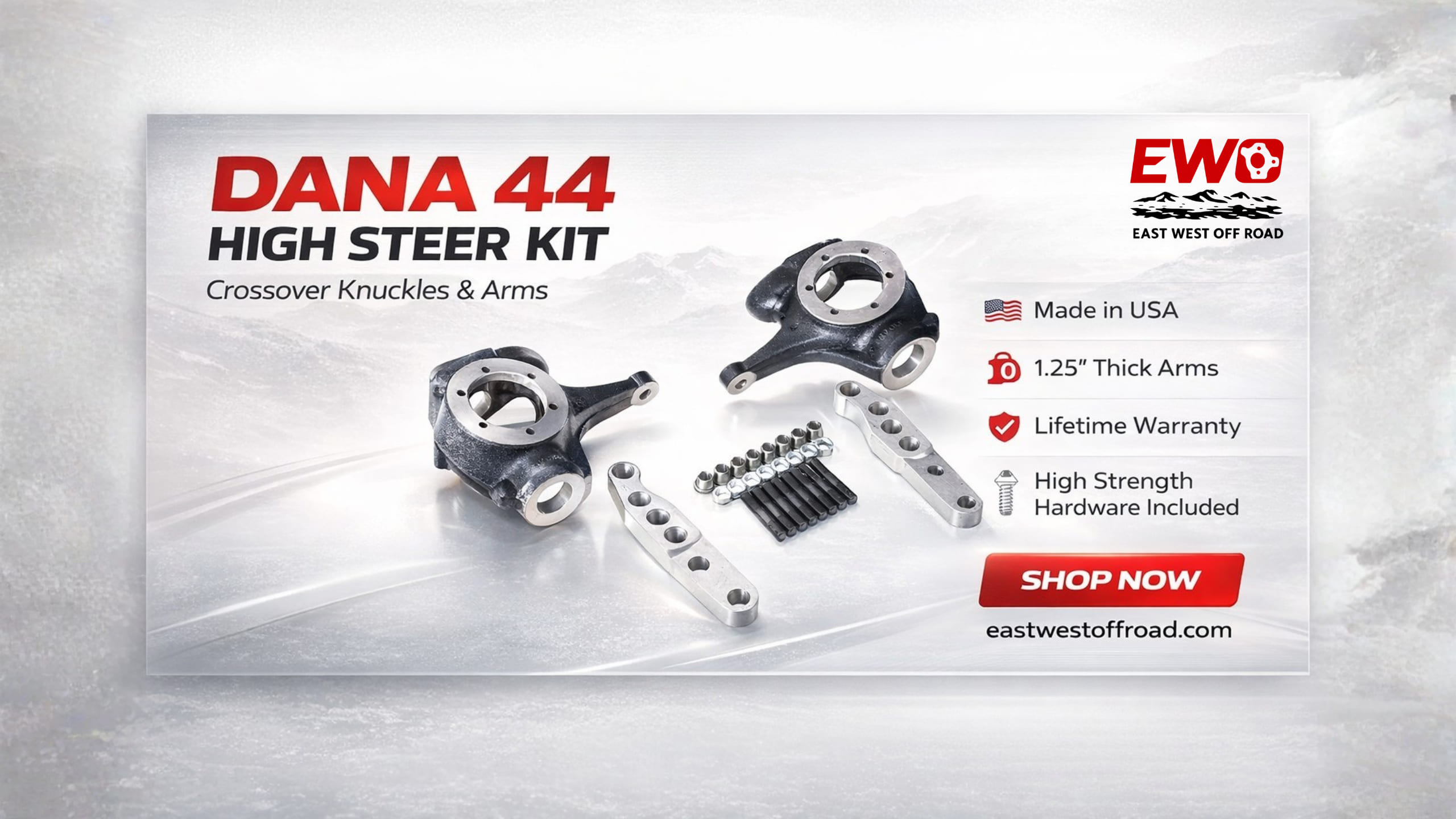

Inside the East West Off Road GM Chevy Dana 44 High Steer Set
When you invest in a steering upgrade, you deserve components that are engineered to outlast the vehicle itself. The GM Chevy Dana 44 high steer set from East West Off Road is a comprehensive, ultra-premium solution designed specifically for demanding full-size GM truck and SUV applications.
In-House Precision Machined Billet Arms
The centerpiece of this kit's mechanical strength lies in the 1.25 inch billet high steer arms. While competitors use thin or cast steering arms that are prone to cracking under high torque or impact, these arms are carved out of massive, domestic billet blocks and machined in-house by East West Off Road.
- Ultra-Thick Construction: At a whopping 1.25 inches thick, these arms resist flexing and handle extreme side-loading effortlessly.
- 4 Hole Billet High Steer Arms: Featuring a rock-solid 4-hole mounting pattern, these arms maximize clamping force across the flat top knuckle surface, ensuring zero shifting under load.
- Lifetime Warranty: Because these are machined in-house with domestic materials, they carry a true lifetime warranty.
Exact Geometry and Hardware Specification
Every component of this hd crossover steering kit is selected to maximize durability on 4x4 trails:
- Dana 44 Bottom Down Taper Knuckle: The driver and passenger knuckles utilize a specialized "bottom down" taper design, optimizing the tie rod positioning to maintain ideal alignment and maximum clearance.
- 7/8 Inch Chevy 3/4 Ton Tie Rod Arms: The arms come pre-tapered specifically to accept robust 7/8 inch Chevy 3/4 ton tie rod arms (or corresponding rod ends), which are widely recognized as the industry standard for custom heavy-duty steering linkages due to their extreme strength and easy trail availability.
- Dana 44 High Strength 9/16 Studs: Mounting heavy billet arms requires hardware that will never shear. The kit includes 8 high-strength 9/16-18 studs alongside conical washers and lock nuts to provide a permanent, unyielding clamp.
Step-by-Step Dana 44 Crossover Steering Installation Overview
While a steering overhaul requires mechanical competence, a comprehensive kit makes the process straightforward. Here is an overview of what a proper Dana 44 crossover steering installation looks like on a GM truck:
- Teardown and Prep: Secure the vehicle on heavy-duty jack stands. Remove the front tires, brake calipers, rotors, and wheel bearings to expose the factory steering knuckles.
- Knuckle Replacement: Unbolt the upper and lower ball joints to remove the old stock knuckles. Clean the spindle surfaces thoroughly and install your new Dana 44 flat top knuckles pair. Torque all ball joints strictly to factory specifications.
- Arm Mounting: Clean the flat tops of the knuckles. Thread the Dana 44 high strength 9/16 studs cleanly into the pre-tapered holes. Place the 1.25-inch thick arms over the studs, drop in the conical washers, and torque down the lock nuts evenly to achieve proper seat clamping pressure.
- Linkage Alignment: Measure and fit your new custom drag link from your pitman arm over to the passenger-side high steer arm. Ensure your steering box is perfectly centered during this step.
- Final Testing: Grease all ends, reassemble your braking components, bleed if necessary, and execute a full lock-to-lock turn cycle while checking for any frame, leaf spring, or crossmember interference before hitting the road.
Why Choose a USA Made Dana 44 Steering Kit?
When you are crawling through remote backcountries or traveling at highway speeds with a lifted vehicle, your steering system is a safety-critical assembly. Choosing a USA made Dana 44 steering kit like the one manufactured by East West Off Road ensures that your components have undergone strict quality control and are crafted from verified, certified domestic alloys. Cheap, imported alternatives often suffer from air pockets in the castings or low-grade steel processing, creating catastrophic failure risks on the trail. Investing in local, in-house American manufacturing pays dividends in durability, safety, and ultimate peace of mind.
Frequently Asked Questions (FAQs)
What is the difference between a crossover steering kit and a high steer kit?
A crossover steering kit changes the drag link layout so that it runs from the driver-side pitman arm over to a dedicated arm on the passenger-side knuckle. A high steer kit goes one step further by elevating both the drag link and the tie rod assembly up above the leaf springs using dedicated steering arms on both knuckles. This keeps all vital steering components protected from rocks, stumps, and trail debris.
Will this kit fit a stock height Chevy truck?
This kit is optimized for lifted applications where factory steering angles become problematic. For vehicles with a suspension lift of 4 inches or greater, a crossover steering conversion is highly recommended to eliminate geometry-induced handling anomalies.
Can I install this kit if my factory axle didn't come with flat top knuckles?
Yes! That is exactly why this complete East West Off Road steering kit includes a matching Dana 44 flat top knuckles pair (both driver and passenger side). You do not need to hunt down rare vintage factory flat top cores or pay separate machining costs; this bolt-on kit provides everything required to modernize your axle housing.
Why does the kit use a 4-hole arm design instead of a 3-hole style?
The 4-hole style provides an extra point of secure clamping force compared to older 3-hole designs. This extra stud prevents the arm from turning or fatiguing the mounting studs under heavy rotational stress when turning oversized mud or rock tires.
What tie rod ends should I buy to complete the installation?
The high steer arms are precision tapered to accept heavy-duty 7/8 inch Chevy 3/4 ton tie rod arms (standard ES2234L or equivalent tie rod ends). These ends offer a perfect balance of massive shank size, robust articulation angles, and simple serviceability.
