When you lift a classic solid-axle 4WD truck or Jeep, modifying the suspension changes more than just your ride height—it completely disrupts your factory steering geometry. Installing a heavy-duty Dana 44 Crossover Steering Kit is the absolute best way to correct these critical geometry changes and restore safety, predictability, and responsiveness to your front end. Original equipment factory linkages rely on a restrictive push-pull layout that binds, wanders, and flexes the moment you add a suspension lift and oversized tires. By upgrading to an elevated, cross-axle horizontal configuration, you move your vulnerable steering components out of harm's way while unlocking the true articulation capacity of your front axle.
The Mechanical Pitfalls of Lifted Factory Steering Layouts
Standard factory solid front axles on older GM and Jeep vehicles utilize a push-pull steering assembly. This design links the steering gear box frame mount directly down to a single steering arm integrated into the driver-side knuckle. While functional at factory ride height, adding an aftermarket suspension lift changes the operating angles drastically.
The Physics of Bump Steer
As your suspension height increases, the physical distance between your truck's frame and the front axle housing widens. This stretches the stock short drag link into a severe downward angle. This harsh angle causes a fatiguing handling condition known as bump steer. Whenever your front tires encounter a deep pothole on the street or an obstacle on the trail, the vertical movement of the axle forces the angled drag link to push or pull against the steering knuckle.
This causes your truck to dart unexpectedly left or right without any driver input at the steering wheel. To permanently Fix Bump Steer Lifted Chevy K5 rigs, K10s, and Jeeps experience, you must ditch the short linkage and switch to a crossover setup that keeps the drag link long and parallel to the front axle housing.
Dana 44 vs 10 Bolt Crossover Steering Commonalities
A common source of confusion for builders during a front-end overhaul is identifying the differences between Dana 44 vs 10 Bolt Crossover Steering setups. Fortunately, from the steering knuckles outward, the spindle bolt configurations, brake bracket mounts, and ball joint tapers are identical between the GM Corporate 10 Bolt and the GM Dana 44 solid front axles.
This architectural commonality means a premium Chevy 10 Bolt Crossover Steering Kit shares the exact same replacement parts, high-steer arms, and flat top knuckles as a classic Dana 44 build. This compatibility offers a true Bolt-On High Steer Kit GM 10 Bolt package that lets you upgrade your Corporate 10 Bolt axle without swapping out your entire differential housing.
Premium Engineering: The East West Off Road System
When navigating demanding off-road trails with large mud-terrain tires, weak cast-iron linkages present an immediate point of failure. The East West Off Road steering kit is manufactured in the USA from precision-machined domestic billet steel blocks, engineered explicitly for trail rigs, rock crawlers, and overland builds that demand heavy-duty strength.
+--------------------------------------------------------------------------+
| EAST WEST OFF ROAD COMPONENT ADVANTAGE |
+----------------------------------+---------------------------------------+
| Component | Engineering Benefit |
+----------------------------------+---------------------------------------+
| EWO Flat Top Knuckles | Integrated 4-hole pad, no machining |
| 1.25" Billet Steering Arms | Domestic steel block, lifetime warranty|
| 1.50" x .250" DOM Tubing | Ultra-thick walls, resists rock hits |
| Heavy-Duty 1-Ton Rod Ends | Maximized articulation, greaseable |
+----------------------------------+---------------------------------------+
Dana 44 Flat Top Knuckle Conversion Made Effortless
Historically, converting to a proper high-steer geometry required tracking down rare vintage flat top parts in salvage yards and paying a machine shop to mill, drill, and tap them. The EWO complete Dana 44 high steer kit completely eliminates this frustrating prep work by providing brand-new Dana 44 driver passenger flat top knuckles right out of the box.
Featuring a specialized "Bottom Down" taper design, this package serves as a true K10 Crossover Steering Kit No Reaming required. It functions as a complete, driveway-ready Chevy 10 bolt high steer with knuckles kit that saves you significant fabrication time during assembly.
USA Made Dana 44 Steering Arms
The mechanical leverage of oversized tires puts extreme shear stress on your front knuckles. To combat this, our kit includes rugged USA Made Dana 44 Steering Arms. Machined in-house from premium domestic billet blocks, these 1.25 inch billet high steer arms use a rigid 4-hole mounting pattern. Backed by a lifetime warranty, these arms provide structural density that refuses to bend, crack, or twist under intense off-road abuse.

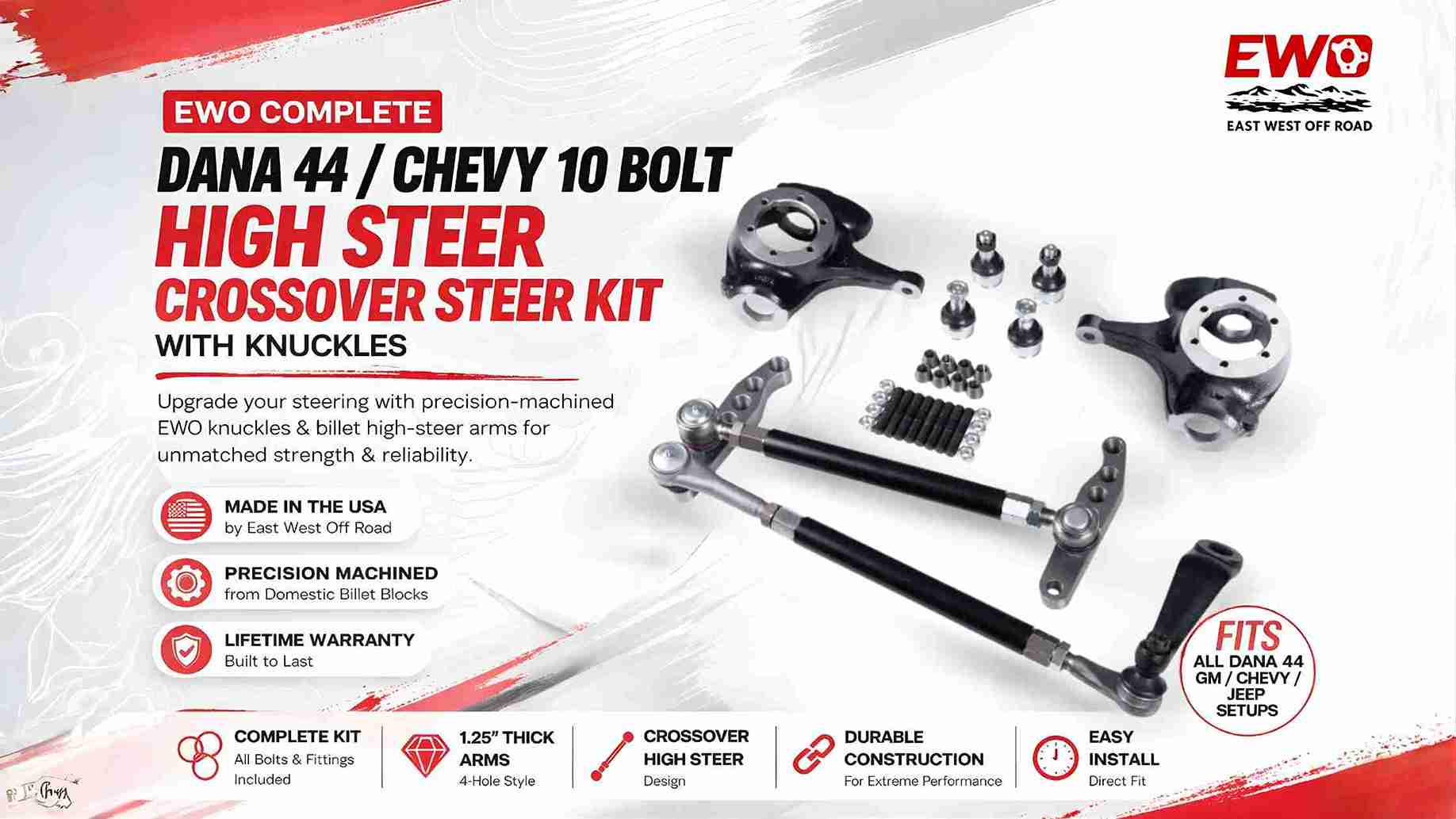

Inside the Complete Dana 44 Crossover Steering System
Our complete crossover system addresses every weak point from your steering box down to your wheel spindles. Whether you are executing a classic Square Body Chevy High Steer Upgrade or looking for a heavy-duty Jeep Dana 44 high steer upgrade, this comprehensive package supplies every critical component necessary for a bulletproof installation:
- Indestructible Links: Outfitted with a heavy-duty 1.50 x .250 DOM tubing steering kit (featuring a 54” link and a 43” link) that can easily shrug off direct boulder impacts.
- 1-Ton Strength Articulation: Replaces weak stock joints with ultra-rugged articulation ends, including ES2026R ES2027L drag link ends and ES2234L ES2234R tie rod ends equipped with castle nuts, cotter pins, and grease fittings.
- High-Tensile Fasteners: Includes eight high-strength Dana 9/16”-18 studs, matching conical washers, lock nuts, left/right 7/8–18 tube adapters (weld bungs), and matching jam nuts.
- Axle Refresh Essentials: To fully restore smooth pivoting and perfect your operating angles, the kit provides a full Dana 44 upper lower ball joints kit and an indexed 3 inch dropped pitman arm 32 spline.
Crucial Installation Mandate: The 2WD Steering Box
Before kicking off your front-end teardown, you must address your vehicle's steering box configuration. A factory 4WD steering gear box moves in a side-to-side sweeping motion, which physically cannot actuate an elongated cross-axle horizontal crossover drag link.
To complete this installation successfully, you must implement a 2wd steering box crossover setup. Swapping your 4WD gear box out for a standard GM 2WD steering box alters the sector shaft movement to a forward-and-backward stroke. This delivers the proper mechanical sweep needed to smoothly push and pull your newly elevated passenger-side crossover linkage across the axle.
Frequently Asked Questions (FAQs)
Will this crossover steering kit work on a factory GM Corporate 10 Bolt axle?
Yes. The outer spindle patterns, brake brackets, and ball joint positions match exactly between the GM 10 Bolt and the Dana 44 front axles. This allows the EWO conversion kit to act as a direct, high-strength hd crossover steering kit upgrade for both axle variations.
Is professional welding required to complete this high-steer installation?
Yes. While the pre-machined flat top knuckles, heavy-duty ball joints, and billet arms bolt directly onto your front end, the provided 7/8–18 left and right tube adapters (weld bungs) must be professionally welded into the thick-walled DOM steering tubes to safely thread in your heavy-duty rod ends.
Why do I have to switch to a 2WD steering gear box for a crossover setup?
Your factory 4WD steering box moves left-to-right to push the original short driver-side drag link. Crossover steering requires the drag link to span horizontally across the axle to the passenger side, demanding a front-to-back stroke to move correctly—which is exactly how a factory GM 2WD steering gear box operates.
What is the advantage of a "no reaming" crossover steering kit?
Older, traditional modification methods required taking stock knuckles to a machine shop to drill and ream the tie rod holes to fit larger 1-ton tie rod ends. This kit includes brand-new, pre-machined flat top knuckles with the correct heavy-duty tapers already cut into them, entirely eliminating the need for a machine shop.
Why are billet steering arms safer than cast iron steering components?
Billet arms are CNC-machined from solid domestic blocks of steel, offering uniform structural density and extreme impact resistance. Cast iron arms are brittle and highly prone to shearing or cracking under the massive side-loads generated by oversized off-road tires.
