When you lift a classic Chevy truck, K5 Blazer, or Suburban, the factory steering geometry quickly becomes your worst enemy. Massive tires and increased ride height put extreme angles on your stock drag link, leading to poor handling, lane wandering, and the dreaded bump steer. If you are looking to fix these handling issues permanently, investing in a high-quality Dana 44 High Steer Kit with Knuckle is the absolute best modification you can make. By moving your steering linkage above the leaf springs, you restore proper geometry, drastically improve trail durability, and regain complete control over your rig.

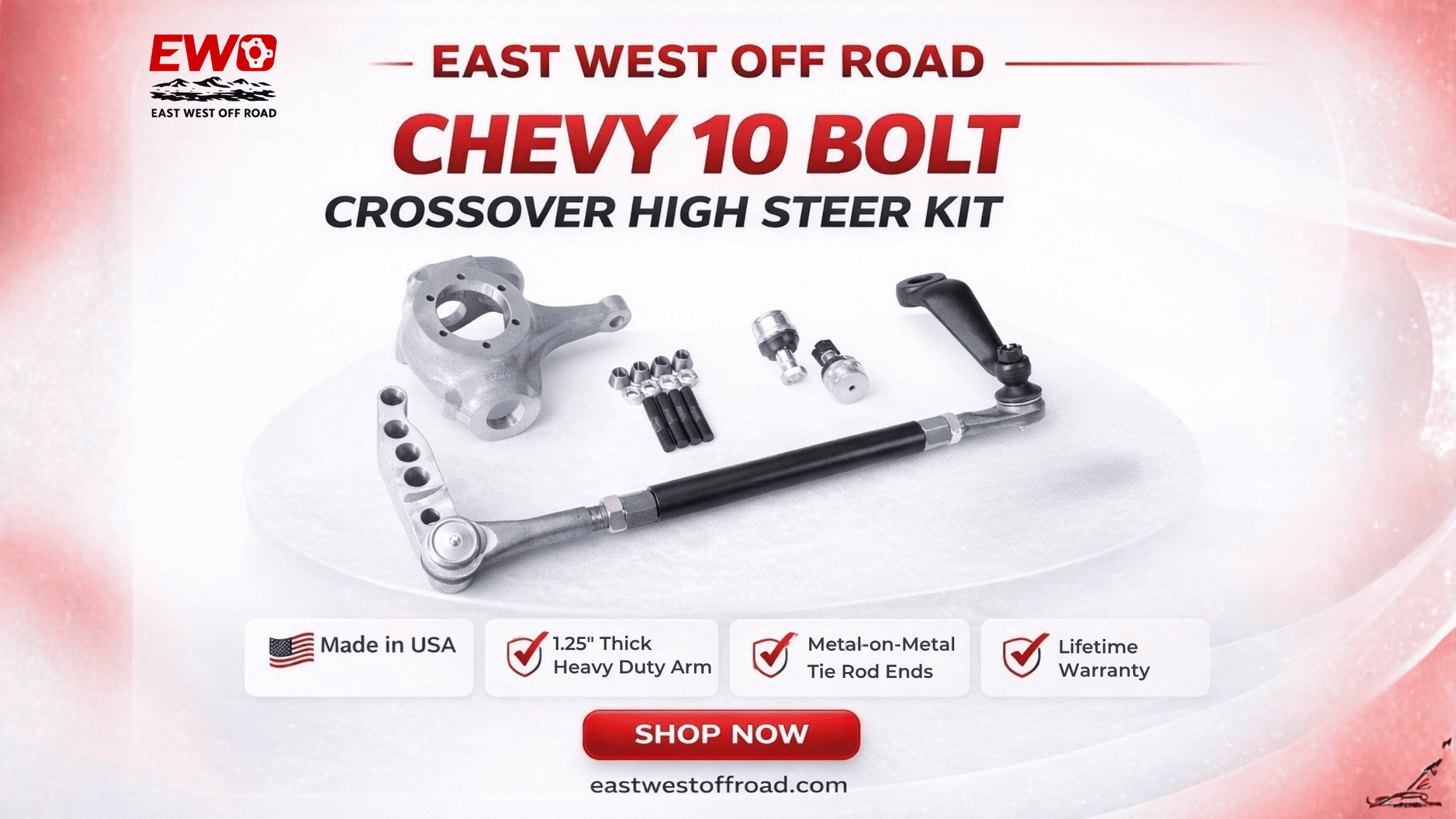

For enthusiasts running GM front axles, executing a Dana 44 to 10 Bolt Steering Swap or upgrading an existing setup requires heavy-duty components that can handle the stress of oversized tires and rock crawling. The EWO complete crossover high steer kit from East West Off road is engineered specifically to address these structural weaknesses, combining a USA-made passenger-side knuckle with ultra-premium billet arms and heavy-duty linkages.
Why Your Factory Chevy Steering Fails on Lifted Rigs
Factory push-pull steering systems were never designed to handle suspension lifts over 4 inches or tires larger than 33 inches. As the angle of the stock drag link increases, every bump in the road or trail forces the axle to push back against the steering box, causing unprompted steering inputs at the steering wheel.
The Physics Behind Bump Steer
When your suspension compresses and decompresses over rough terrain, a steep drag link angle forces the front tires to turn slightly without you ever moving the steering wheel. To Eliminate Bump Steer Lifted Chevy trucks frequently suffer from, you must flatten the drag link angle. A dedicated hd crossover steering kit changes the geometry entirely by routing the drag link across the vehicle from the pitman arm to the passenger side knuckle, keeping it parallel with the axle housing.
The Weakness of Factory Knuckles and Links
The stock steering components use thin-walled tubing and weak tie rod ends that easily bend or snap under off-road stress. Transitioning to a heavy duty crossover steering Dana 44 setup or a comprehensive Chevy 10 bolt steering upgrade ensures that your front end can handle extreme torque when wedged between rocks or crawling through deep mud ruts.
The Ultimate Solution: East West Off road Crossover & High Steer Kit
If you want a bulletproof front end, a partial upgrade won't cut it. The Chevy 10 bolt crossover steering kit provides everything needed to completely overhaul your vehicle's steering geometry. It is compatible across all Dana 44 and Chevy 10 Bolt front axle configurations, making it a highly versatile solution for square-body Chevy owners.
USA-Made Flat Top Knuckle Conversion Kit
At the heart of this upgrade is the Flat Top Knuckle Conversion Kit. The kit includes a premium Dana 44 / Chevy 10 Bolt passenger-side knuckle made right here in the USA by EWO. This heavy-duty knuckle comes pre-machined with a "Bottom Up" taper, allowing for optimal clearance. It also includes a slit tapered insert, giving you the flexibility to change the orientation to "Bottom Down" depending on your specific suspension clearance and lift height.
Premium 1.25-Inch Billet High Steer Arms
While many aftermarket brands use cheap cast iron arms, East West Off road utilizes domestic billet blocks machined completely in-house. These 1.25 inch billet high steer arms feature a robust 4-hole mounting style to handle extreme lateral forces. Because of this uncompromising manufacturing standard, these billet arms are backed by an incredible Lifetime Warranty. The passenger side arm is perfectly tapered for heavy-duty 7/8-inch Chevy 3/4-ton tie rods.
Uncompromising Component Strength and Engineering
An off road steering system is only as strong as its weakest link. East West Off road engineered this kit with oversized, heavy-duty materials designed to survive worst-case scenarios on the trail.
DOM Tubing Drag Link Kit
The kit features a massive DOM tubing drag link kit consisting of a 43-inch long, 1.50-inch outer diameter, and 0.250-inch wall thickness DOM tube. This provides more than enough material length for custom fitting to your specific lift size. To complete the link, the package includes premium 7/8–18 left and right weld bungs (tube adapters) and matching jam nuts.
Metal-to-Metal Tie Rod Ends with Spring Technology
Standard auto-parts-store tie rod ends utilize plastic or nylon liners that deform and develop play rapidly when turning large off-road tires. The Dana 44 High Steer Kit with Knuckle includes the ultra-rugged ES2026R ES2027L drag link ends. These are true metal to metal tie rod ends designed with internal spring technology that automatically takes up wear over time, performing way beyond typical industry expectations. Each end comes complete with grease fittings, castle nuts, and cotter pins.
Complete Heavy Duty Hardware Pack
To ensure your new high steer arm never shears off the knuckle, the kit provides an ultra-strong mounting hardware kit:
- 4x High-strength Dana 9/16” studs
- 4x Conical washers
- 4x Lock nuts
- 1x Heavy-duty metal-on-metal upper ball joint
- 1x Heavy-duty metal-on-metal lower ball joint (included via the comprehensive Dana 44 upper lower ball joint kit)
Step-by-Step Steering Transformation for Your Chevy
Upgrading to a Chevy 10 Bolt Crossover High Steer Kit completely alters how your truck handles both on the highway and on the rocks. It shifts your steering configuration from a weak, limited-travel setup to a high-clearance, high-leverage system.
Converting to Crossover Steering
In a classic Dana 44 crossover steering setup, your steering inputs travel from the steering box over to the passenger side instead of pushing front-to-back on the driver's side. This layout requires a 3 inch drop forged pitman arm 32 spline unit, which is fully indexable and included in the EWO kit.
The 2WD Steering Box Requirement
Please Note: To successfully complete this swap on a 4WD truck, you will need a 2wd steering box crossover swap. The factory 4WD steering box sector shaft rotates in a way that prevents proper crossover movement. A 2WD steering box allows the pitman arm to cycle side-to-side, which is mandatory for all crossover steering setups on these vehicles.
Maximizing Clearance with High Steer
For extreme off-roading, a standard crossover setup can still leave your tie rod vulnerable to obstacles. Integrating a true Dana 44 high steer knuckle allows you to move the entire steering linkage up above the leaf springs. This provides ultimate protection against trail obstacles and creates the cleanest possible geometry for vehicles like the K5 Blazer High Steer System or heavy-duty lifted pickups running a custom heavy duty drag link kit Chevy setup.
Benefits of the EWO Chevy 10 Bolt Steering Conversion
Upgrading to the Dana 44 High Steer Kit with Knuckle delivers immediate, noticeable improvements to your vehicle's drivability:
- Precise Handling: Say goodbye to excessive steering wheel play and constant lane wandering on the highway.
- Maximum Trail Clearance: Keeping your steering rods tucked high protects your critical steering components from expensive trail damage.
- Full Suspension Articulation: Eliminates steering binding, allowing your front axle to flex completely without pulling or locking up your steering wheel.
- Unmatched Reliability: With a massive GM 1 Ton Tie Rod Upgrade profile, DOM tubing, and billet arms, you minimize the risk of being stranded on the trail with broken steering.
Frequently Asked Questions (FAQs)
What is the difference between crossover steering and high steer?
Crossover steering moves the drag link so that it connects from the pitman arm across the vehicle to the passenger side knuckle. High steer takes this a step further by utilizing high steer arms mounted to the top of flat-top knuckles, moving both the drag link and the tie rod completely above the leaf springs for maximum ground clearance and trail protection.
Can I install this kit on a factory 4WD steering box?
No. You must perform a 2wd steering box crossover swap. A factory 4WD steering box cycles front-to-back, whereas a 2WD steering box cycles side-to-side, which is required to push and pull the cross-over steering drag link properly.
Will this kit fit a standard Chevy 10-bolt front axle?
Yes, this system is engineered perfectly as a Chevy 10 bolt steering conversion and Dana 44 system. Because the Chevy 10-bolt and Dana 44 share identical knuckle mounting architecture, this kit provides a direct bolt-on upgrade for both axle types.
What makes the East West Off road kit better than cheap alternatives?
The East West Off road steering kit stands apart because it features a USA-made EWO knuckle, massive 1.25-inch thick domestic billet blocks machined in-house with a Lifetime Warranty, and heavy-duty metal-to-metal tie rod ends with advanced spring technology rather than weak plastic linings.
