If you lift a classic square-body truck, Suburban, or K5 Blazer, your factory steering linkage immediately becomes the weak link. The stock push-pull configuration simply cannot handle severe angles, resulting in massive bump steer, reduced turning radius, and dangerous handling. To fix this, off-road enthusiasts turn to a Heavy Duty Drag Link Kit Chevy setup to completely revolutionize their steering geometry. By converting to a high-clearance crossover configuration, you restore control, strengthen your front end, and unlock the true wheel travel potential of your rig.
When pushing your truck hard on the trail or running larger tires, upgrading to an hd crossover steering kit becomes essential. Standard steering components flex and fail under load. Transitioning to a heavy-duty system ensures your front-end geometry remains stable, your tires stay pointed exactly where you intend, and your steering components survive brutal trail abuse.
The Ultimate Chevy 10 Bolt Steering Upgrade
The corporate GM 10-bolt front axle is incredibly common in older Chevy trucks, but its factory steering configuration is notoriously fragile. Performing a comprehensive Chevy 10 bolt steering upgrade transforms your truck's driving dynamics both on and off the road.
Why the Stock Push-Pull Steering Fails
Standard factory push-pull steering uses a drag link that runs parallel to the frame rail, connecting to the driver-side steering knuckle. When you add a lift kit, that drag link operates at a steep, harsh angle. Every time your front suspension compresses or rebounds over a bump, the axle moves slightly, forcing the drag link to rotate the steering knuckle. This involuntary steering input is known as bump steer, and it makes high-speed driving terrifying and off-roading highly inefficient.
The Crossover Advantage
Crossover steering completely rewires this geometry. Instead of running front-to-back along the frame rail, a crossover drag link runs side-to-side across the vehicle, connecting a chassis-mounted pitman arm to a passenger-side steering knuckle. This horizontal orientation matches the natural travel arc of your front axle, allowing you to effectively eliminate bump steer lifted Chevy trucks suffer from.
Demystifying High Steer and Flat Top Knuckles
To run a true crossover or high steer setup on a GM 10-bolt or Dana 44 axle, you cannot use the factory passenger-side knuckle because it lacks mounting provisions for an upper steering arm. This requires a physical modification to the axle assembly.
Flat Top Knuckle Conversion Kit
A flat top knuckle conversion kit replaces the factory passenger-side knuckle with a heavy-duty cast unit that features a precisely machined, flat top surface. This flat surface is drilled and tapped with heavy-duty structural threads to accept an independent, raised steering arm. This setup elevates your steering linkages completely out of harm's way, safely tucked up near the oil pan rather than hanging down low where rocks can slice through them.
Dana 44 High Steer Kit with Knuckle
For those looking for maximum strength, a complete Dana 44 High Steer Kit with Knuckle is the gold standard. This layout raises both your drag link and your tie rod above the leaf springs. This provides ultimate obstacle clearance while keeping your steering linkages in perfect parallel harmony, dramatically reducing strain on your steering box housing.

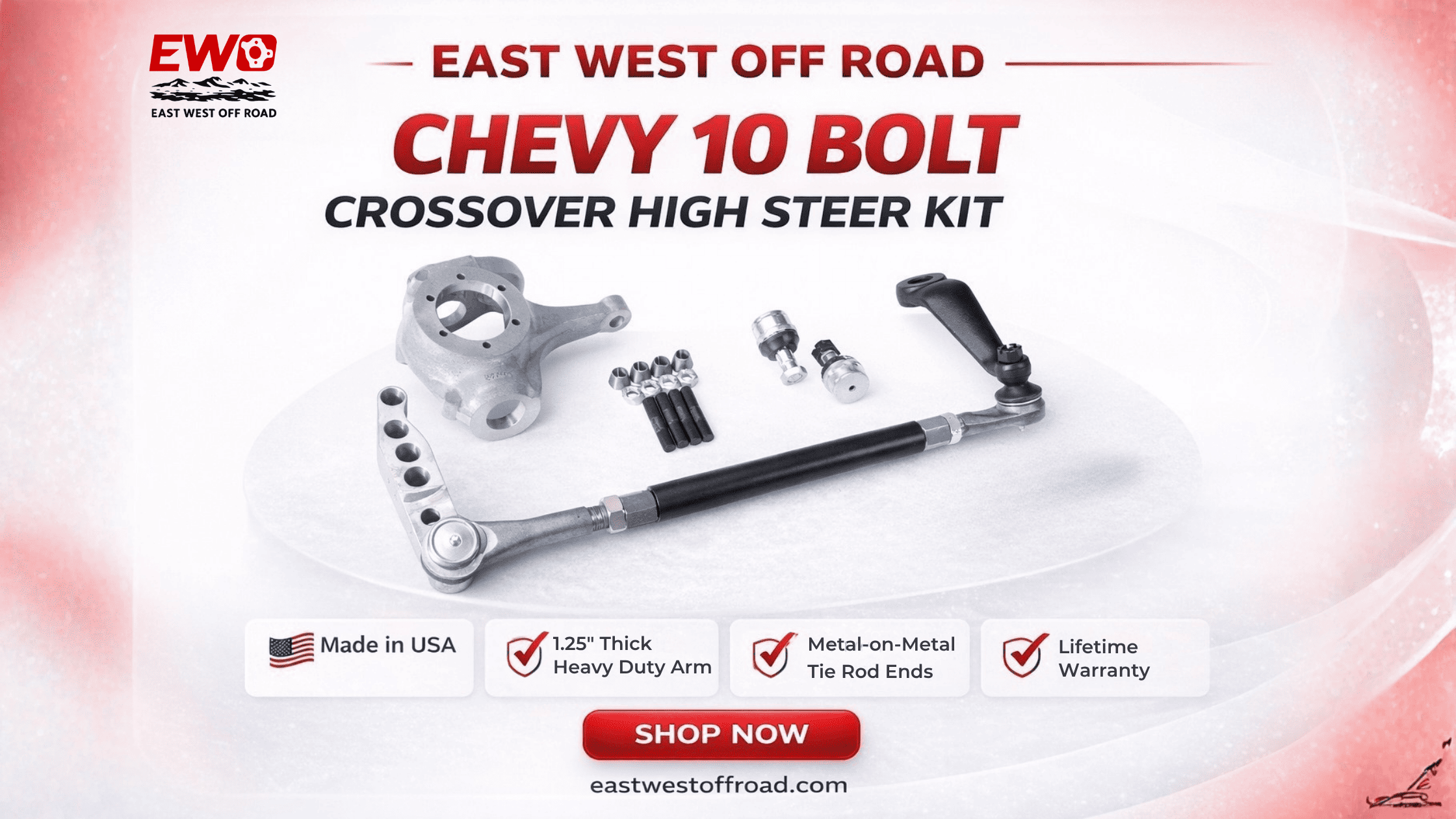

Inside the EWO Complete Crossover High Steer Kit
When it comes to bulletproof engineering, the EWO complete crossover high steer kit from East West Offroad stands alone in the aftermarket industry. Designed specifically as a direct, heavy-duty solution, this kit addresses every weakness found in vintage GM front-end configurations.
USA-Made Machined Knuckles
At the core of the East West Offroad steering kit is a premium Dana 44 / Chevy 10-bolt knuckle, proudly machined right here in the USA by EWO.
- Bottom-Up Taper: The knuckle is natively machined with a "Bottom Up" taper for the steering ends.
- Slit Tapered Insert: To maximize flexibility for custom builder configurations, EWO includes a specialized split tapered insert. This allows you to easily flip the orientation to a "Bottom Down" taper if your specific lift height or clearance limits require it.
Billet High Steer Arms with Lifetime Warranty
The passenger-side high-clearance arm is a masterpiece of domestic manufacturing. Machined in-house from solid, domestic billet blocks, these 1.25 inch billet high steer arms are built to survive extreme rock crawling. EWO stands behind this precision engineering by offering a literal Lifetime Warranty on their billet arms. The arm features a robust 4-hole mounting pattern and is custom tapered to accept heavy-duty 7/8-inch Chevy 3/4-ton tie rod ends.
Premium Metal-on-Metal Ball Joints
To ensure your newly upgraded steering axle handles flawlessly, this system includes a premium Dana 44 upper lower ball joint kit. Unlike cheap parts-store replacements that rely on plastic or nylon seats that deform under big tires, these are true metal-on-metal upper and lower ball joints designed to withstand severe vertical and radial loads without developing sloppy play.
Heavy-Duty Component Breakdown
Building a system that outlasts the truck requires choosing the right materials. A heavy duty drag link kit Chevy upgrade must rely on components that resist bending under intense torque.
DOM Tubing Drag Link Kit
The link between your steering box and your passenger knuckle takes immense abuse. EWO uses a massive DOM tubing drag link kit as the centerpiece of their assembly. Measuring a substantial 43 inches in length with a 1.50-inch Outer Diameter (OD) and a thick .250-inch wall thickness, this heavy-wall steel tubing offers massive structural resistance against bowing or bending when wedged against off-road obstacles.
GM 1 Ton Tie Rod Upgrade Ends
To route power smoothly from the linkage to the knuckles, the kit features legendary GM 1 Ton Tie Rod Upgrade components. It includes:
- ES2026R ES2027L drag link ends with built-in grease fittings, castle nuts, and cotter pins.
- Premium metal to metal tie rod ends utilizing internal spring technology that automatically compensates for wear over time, outperforming standard steering joints by wide margins.
- Heavy-duty 7/8–18 left and right weld bungs (tube adapters) alongside matching left and right jam nuts to make fine-tuning your alignment easy.
Drop Forged Pitman Arm and Studs
To secure the arm to the knuckle, the kit provides four high-strength Dana 9/16-inch studs, four matching conical washers, and four lock nuts. To translate steering wheel rotation down to the dirt, the kit includes a 3 inch drop forged pitman arm 32 spline unit that is fully indexable, allowing you to locate perfect mechanical center during installation.
Installation & Configuration Requirements
Converting your vehicle to an ultra-reliable heavy duty crossover steering Dana 44 or 10-bolt system requires understanding specific chassis requirements before tearing down your front axle.
The 2WD Steering Box Requirement
The most critical requirement when performing a Chevy 10 Bolt Crossover High Steer Kit installation is your steering gear box. You must use a 2wd steering box crossover swap for all crossover steering setups.
- Why? A factory 4WD steering box rotates its pitman arm in a front-to-back motion (perfect for old push-pull setups).
- The Solution: A 2WD steering box rotates its sector shaft side-to-side. This side-to-side sweep is mandatory to push and pull your new cross-chassis heavy-duty drag link.
Executing the Steering Swap
Whether you are performing a Dana 44 to 10 Bolt Steering Swap, a full K5 Blazer high steer system overhaul, or a standard Chevy 10 bolt steering conversion, the mechanical footprint remains identical. Swapping from standard linkages to an offroad crossover steering Dana 44 configuration provides consistent tire tracking, eliminates tire wear caused by erratic toe-change over bumps, and delivers a rock-solid steering wheel feel that removes the stress from both highway commuting and technical trail crawling.
Frequently Asked Questions (FAQs)
Why do I need a 2WD steering box for a crossover steering conversion?
A factory 4WD steering box is designed for push-pull linkages and moves forward and backward. A crossover configuration requires side-to-side mechanical movement. A 2WD steering box features the correct sector shaft orientation to cycle the drag link horizontally across your chassis.
What is the difference between crossover steering and high steer?
Crossover steering moves your drag link so that it crosses over the axle from the steering box to the passenger side knuckle, keeping the tie rod low. High steer elevates both the drag link and the tie rod above the leaf spring packs using specialized raised billet steering arms on top of flat-top knuckles, protecting all your steering gear from trail obstacles.
Will this heavy-duty drag link kit fit my factory 10-bolt knuckle?
No, factory passenger-side 10-bolt knuckles lack the flat machined top and mounting holes required to install a high steer arm. You must install a flat-top style knuckle—such as the USA-machined EWO knuckle included in this complete kit—to mount your crossover steering arm securely.
What makes metal-to-metal tie rod ends better than standard joints?
Standard factory style tie rod ends frequently use internal plastic or nylon liners that quickly crush, wear down, and develop loose vertical play when paired with large 35-inch or 37-inch off-road tires. Metal-to-metal tie rod ends with integrated spring-tension technology constantly adjust for wear internally, maintaining a tight, slop-free steering connection under extreme pressure.
Can I install this kit on a Dana 44 front axle instead of a Chevy 10-bolt?
Yes! The steering knuckles, bolt patterns, and spindle mount profiles are cross-compatible between the GM corporate 10-bolt front axle and the open-knuckle Dana 44 front axle. This makes the EWO kit ideal for both factory axles and custom axle swaps.
