Lifting your classic 1973–1987 (or '91 Suburban/Blazer) GM truck is a rite of passage for off-road enthusiasts. But once you add a 4-inch or larger suspension lift to clear aggressive mud tires, you will quickly discover that the factory push-pull steering geometry becomes a dangerous liability. To reclaim precise handling, maximize your front suspension articulation, and eliminate terrifying steering wheel feedback, investing in a premium Square Body Chevy High Steer Upgrade is an absolute necessity. By relocating your critical steering linkages up and out of harm's way, you transform a wandering, unpredictable trail rig into a highly controlled machine ready for the highway and the rocks.
The Flaws of Lifted Factory Steering Layouts
From the factory, classic solid-axle GM vehicles were equipped with a "push-pull" steering linkage that connects the gear box directly to the driver-side knuckle. At stock height, this works fine. However, lifting your suspension pulls the front axle drastically further away from the frame, forcing that short drag link into a severe downward angle.
Why You Experience Severe Bump Steer
This steep angle binds your tie rod ends and drastically reduces your turning radius. Even worse, as your suspension cycles up and down over rough terrain, the vertical movement forcefully pushes and pulls against that angled drag link. This forces your tires to steer independently of your steering wheel input. If you want to permanently Fix Bump Steer Lifted Chevy K5, K10, or K20 models, you must flatten the drag link’s operating angle.
A heavy-duty crossover setup achieves exactly that. By routing an elongated drag link horizontally across the front axle to the passenger side, the linkage remains parallel to the housing, completely isolating your steering from suspension travel.
Dana 44 vs 10 Bolt Crossover Steering: Understanding Compatibility
A major point of confusion for classic truck builders is determining the mechanical differences between Dana 44 vs 10 Bolt Crossover Steering configurations. The great news is that the outer knuckle architecture—including the spindle bolt patterns, brake caliper brackets, and ball joint tapers—is functionally identical between the GM Corporate 10 Bolt and the GM Dana 44 solid front axles.
Because these dimensions match exactly, a Chevy 10 Bolt Crossover Steering Kit utilizes the exact same premium parts as a Dana 44 build. This acts as a direct Bolt-On High Steer Kit GM 10 Bolt solution, meaning you can massively upgrade your front end without having to source an entirely different differential housing.
The East West Off Road Advantage: Built for Extreme Abuse
When you are turning 37-inch to 40-inch tires in deep ruts, cheap imported cast-iron components pose a serious safety risk. The East West Off Road steering kit is manufactured right here in the USA, providing uncompromised structural density for hardcore wheeling.
USA Made Billet Steering Arms and Pre-Machined Knuckles
Historically, upgrading your steering meant pulling your factory knuckles, driving to a machine shop, and paying hundreds of dollars to have them milled flat, drilled, and tapped. The EWO complete Dana 44 high steer kit bypasses this headache entirely.
Included in the box are brand-new Dana 44 driver passenger flat top knuckles. Engineered with a proprietary "Bottom Down" taper to flawlessly accept massive 1-ton tie rod ends, this setup acts as a true K10 Crossover Steering Kit No Reaming required. This allows you to perform a complete Dana 44 Flat Top Knuckle Conversion right in your driveway.
Bolted straight to those heavy-duty knuckles are the true heavyweights of the kit: USA Made Dana 44 Steering Arms. CNC-machined in-house from solid domestic metal, these 1.25 inch billet high steer arms utilize a robust 4-hole mounting design. Backed by a lifetime warranty, they will never shear or twist under the massive leverage of off-road driving.

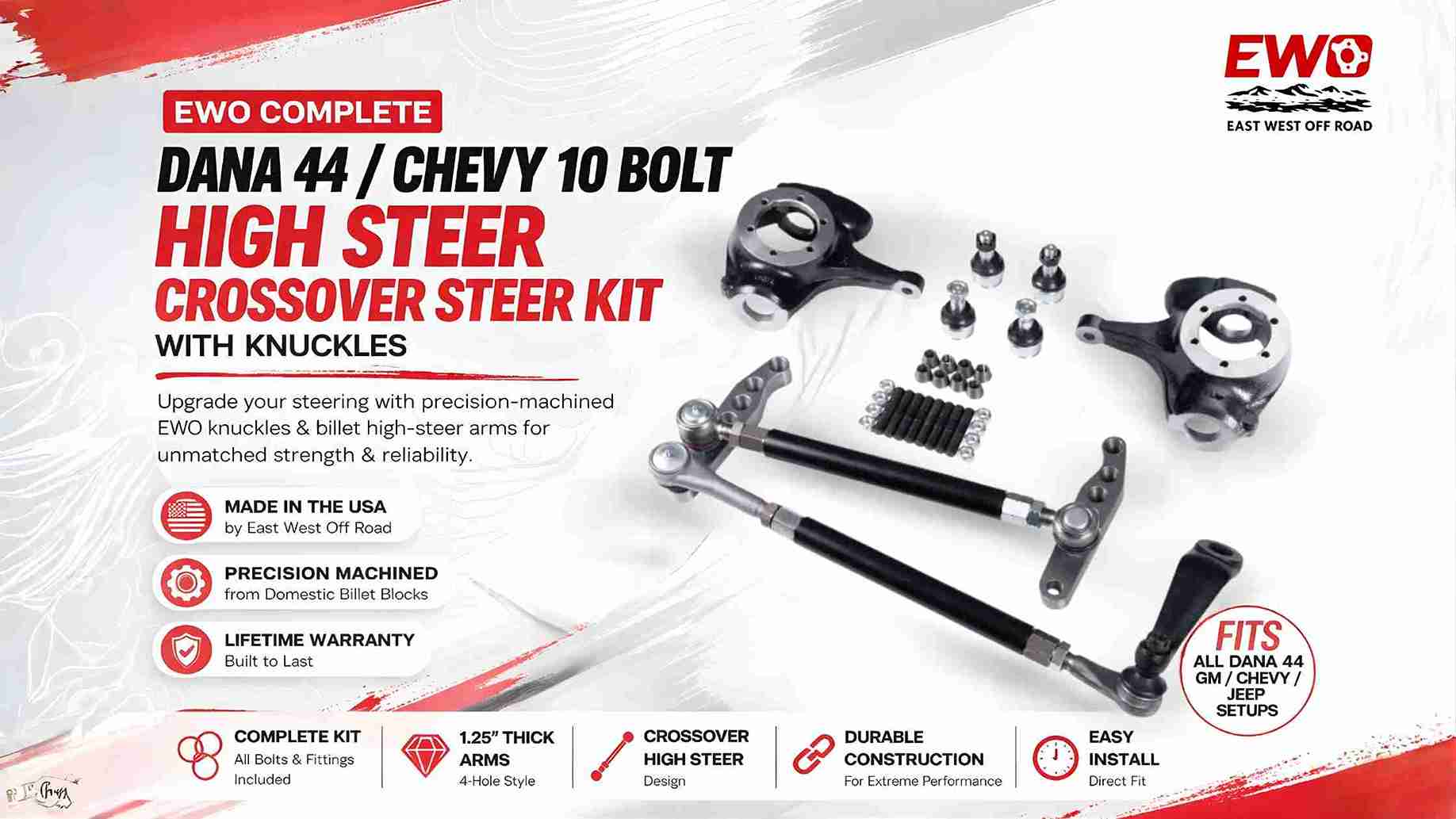

Inside the Ultimate Driveway-Ready Assembly
Sourcing individual tapers, hardware, and bungs can stall your build for weeks. Whether you are executing a classic Chevy 10 bolt high steer with knuckles upgrade or outfitting a custom Jeep Dana 44 high steer upgrade, this Complete Dana 44 Crossover Steering System delivers every necessary component in one heavy-duty package:
- Indestructible DOM Tubing: Bridge the gap with a 1.50 x .250 DOM tubing steering kit (featuring a 54” tube and a 43” tube). The quarter-inch thick walls effortlessly deflect direct boulder impacts.
- Premium 1-Ton Articulation: The kit includes massive ES2026R ES2027L drag link ends and ES2234L ES2234R tie rod ends, complete with grease fittings, castle nuts, and cotter pins.
- High-Tensile Hardware: Outfitted with eight high-strength Dana 9/16”-18 studs, matching conical washers, lock nuts, left and right 7/8–18 tube adapters (weld bungs), and heavy-duty jam nuts.
- Axle Refresh Components: To perfect your operating angles, the kit supplies a full Dana 44 upper lower ball joints kit and a fully indexed 3 inch dropped pitman arm 32 spline.
Crucial Setup Requirement: The 2WD Steering Box
Before kicking off your teardown, you must address your chassis components. The factory 4WD steering gear box on square body GM trucks sweeps in a side-to-side motion, which physically cannot actuate an elongated cross-axle horizontal drag link.
To complete this installation successfully, you must implement a 2wd steering box crossover setup. Swapping your 4WD gear box out for a standard GM 2WD steering box alters the sector shaft movement to a front-to-back stroke, providing the exact mechanical sweep required to smoothly push and pull your newly elevated passenger-side linkage.
Frequently Asked Questions (FAQs)
Will this hd crossover steering kit fit a standard Corporate 10 Bolt front axle?
Yes! The outer spindle configurations, brake caliper brackets, and ball joint positions match exactly between the GM Corporate 10 Bolt and the GM Dana 44 front axles. This premium EWO kit functions as a direct, heavy-duty upgrade for both axle types.
Is professional welding required for this high steer conversion?
Yes. While the pre-machined flat top knuckles, heavy-duty ball joints, and billet arms bolt directly onto your axle housing, the included 7/8–18 left and right tube adapters (weld bungs) must be professionally welded into the thick-walled DOM steering tubes so you can safely thread in your heavy-duty rod ends.
Why is it called a "no reaming" crossover steering kit?
Older methods required taking stock knuckles to a machine shop to drill and taper (ream) the tie rod holes to fit larger 1-ton rod ends. This kit includes brand-new, pre-machined flat top knuckles with the correct heavy-duty tapers already cut into them, entirely eliminating the need for a machine shop.
Why does a crossover steering setup demand a 2WD steering gear box?
Your factory 4WD steering box moves left-to-right to pull the original short driver-side drag link. Crossover steering requires the drag link to span horizontally across the axle to the passenger side, demanding a front-to-back stroke to move correctly—which is exactly how a factory GM 2WD steering gear box operates.
What is the mechanical benefit of the "Bottom Down" taper design?
The "Bottom Down" taper engineered into the EWO knuckles allows the heavy-duty 1-ton tie rod ends to install from the bottom up. This specific geometry maintains safe operating clearance away from your leaf spring pack, preventing binding during extreme articulation.
